IP Multicast UHD Video Transmitter over 1GB Network
Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Network switch.
The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB / KVM up to lengths of 100m over standard network architecture.
The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.
• Advanced UHD video over 1Gb Network
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of IR, RS-232, USB/KVM*, audio and video
• PoE (Power over Ethernet) to power Blustream products from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Analog L/R audio embedding
• Analog L/R audio breakout
• Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately
• Features 4 operational modes:
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)
*USB connectivity for IP200 series products only supports bulk mode cameras, and will not support isochronous USB data transfer for VC equipment / cameras.
*Compatible IP Controllers: ACM200, ACM210
• Video Input: 1 x HDMI Type A, female
• Video Output: 1 x LAN RJ45 connector
• Latency: 1 Frame (16-33ms depending on frame rate)
• Audio Input: 1 x 3.5mm L/R Analog audio
• Audio Output Connectors: 2 x RCA L/R Analog audio
• Ethernet Port: 1 x LAN RJ45 connector
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• USB / KVM Port: 1 x USB - Type B
• IR Input: 1 x 3.5mm stereo jack
• IR Output: 1 x 3.5mm mono jack
• PoE draw: 6.0W (typical), 7.2W (max load)
• Firmware Update: 1 x Micro-USB
• Mounting Kit Included
• Dimensions (W x D x H ): 190mm x 114mm x 25mm
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
1 x IP200UHD-TX
1 x (IRR) IR Receiver
1 x (IR1) IR Transmitter
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
We have regional headquarters located in Melbourne, Australia, the UK and the USA. From all locations our experienced product managers are on hand to provide real time sales and technical support to our customers. Coupled with state of the art testing and training facilities this ensures our products can be installed in any AV environment with unrivalled confidence. We proudly deliver 24 hour technical support via phone, email and live chat to our sales partners throughout the world.
United Kingdom
Blustream UK
The Service Station,
Melton Road,
Hickling Pastures,
Nottinghamshire,
LE14 3QG, UK
+44(0) 115 8247000
European Union
Blustream SL
Calle Oro 45,
Nave 10,
28770,
Colmenar Viejo,
Madrid, Spain+34 911 232 072
USA
Blustream USA
5775 12th Avenue East,
Suite 180,
Shakopee,
MN 55379
+1 (952) 333-8411
Australia/Oceana
Blustream Australia
26 Lionel Road,
Mt. Waverley,
Victoria 3149,
Australia,
+61 3 8691 1999

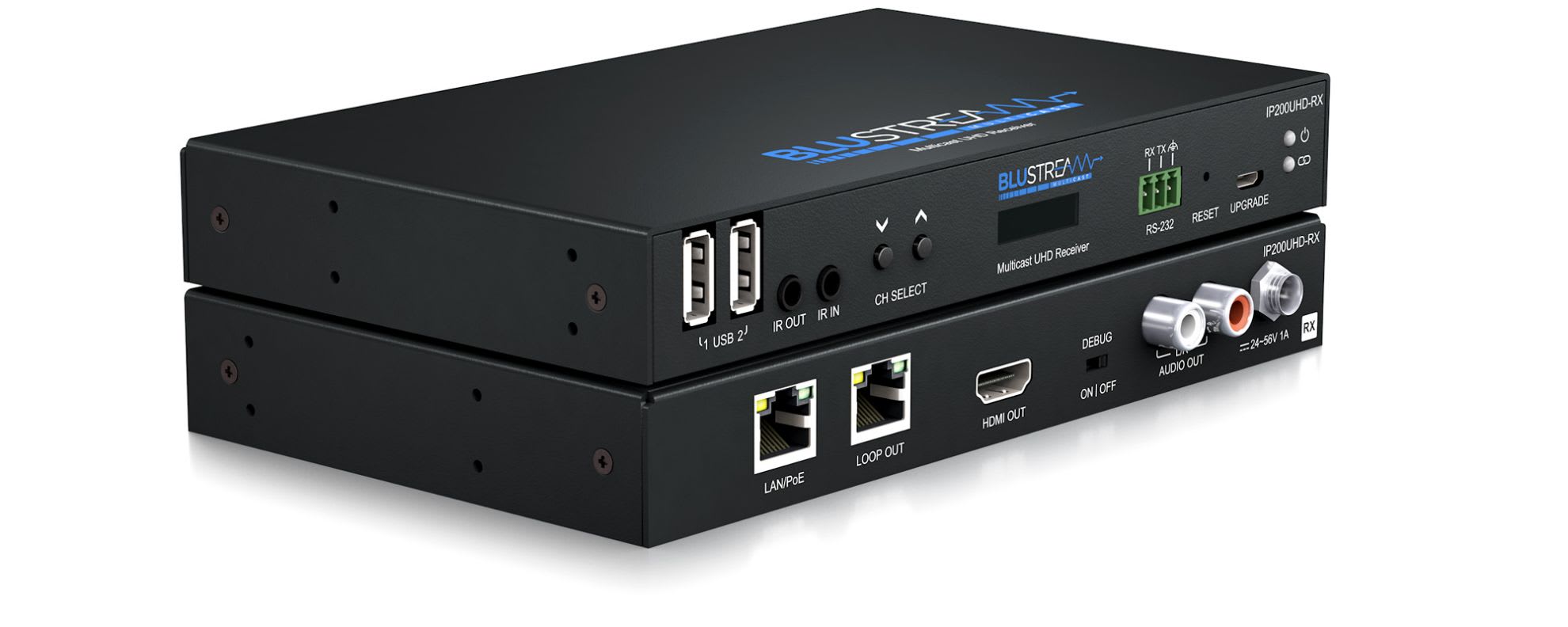

IP Multicast UHD Video Receiver over 1Gb Network
