Custom Pro 8x8 HDBaseT™ CSC Matrix
The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.
• Custom Pro Matrix Hub with 8 x modular bays for population of control and input / output boards
• Up to 8 x video inputs and 8 x video outputs can be achieved using Custom Pro boards
• 8 x analog L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Control of matrix via front panel, IR, RS-232, TCP/IP and web-GUI / App
• Supports PoC (Power over Cable) when used with compatible HDBaseT™ input / output cards
• Web interface module for control and configuration of matrix
• 3rd Party drivers available for major control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
• RS-232 Serial Ports: 1 x 9-pin RS-232 connector
• TCP/IP Control: 1 x RJ45, female
• Rack-Mountable: 2U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 87mm x 282mm without feet
• Casing Dimensions (W x H x D): 440mm x 94mm x 288mm with feet / connections
• Shipping Weight: 5.0kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 12V/6A DC
Product Images
We have regional headquarters located in Melbourne, Australia, the UK and the USA. From all locations our experienced product managers are on hand to provide real time sales and technical support to our customers. Coupled with state of the art testing and training facilities this ensures our products can be installed in any AV environment with unrivalled confidence. We proudly deliver 24 hour technical support via phone, email and live chat to our sales partners throughout the world.
United Kingdom
Blustream UK
The Service Station,
Melton Road,
Hickling Pastures,
Nottinghamshire,
LE14 3QG, UK
+44(0) 115 8247000
European Union
Blustream SL
Calle Oro 45,
Nave 10,
28770,
Colmenar Viejo,
Madrid, Spain+34 911 232 072
USA
Blustream USA
5775 12th Avenue East,
Suite 180,
Shakopee,
MN 55379
+1 (952) 333-8411
Australia/Oceana
Blustream Australia
26 Lionel Road,
Mt. Waverley,
Victoria 3149,
Australia,
+61 3 8691 1999
Related Products

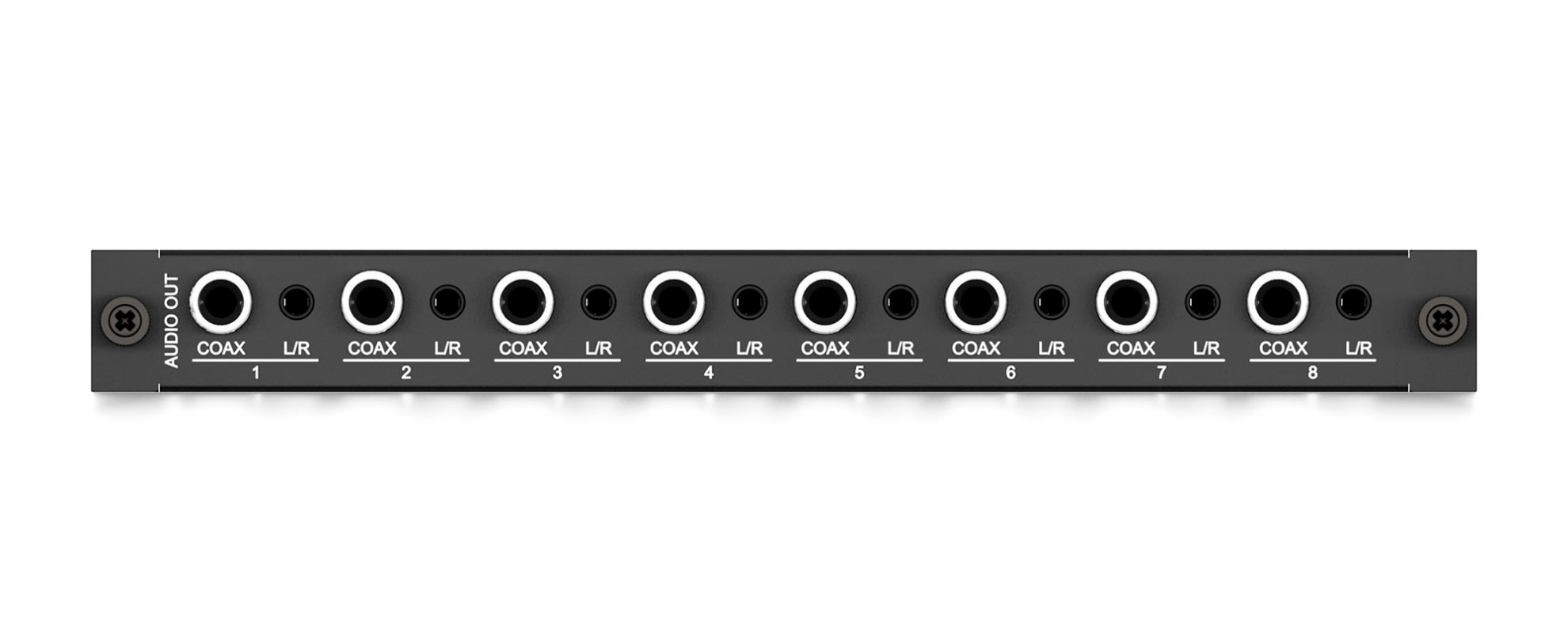

PRO-8AB
8 Dual Output Audio Breakout Board

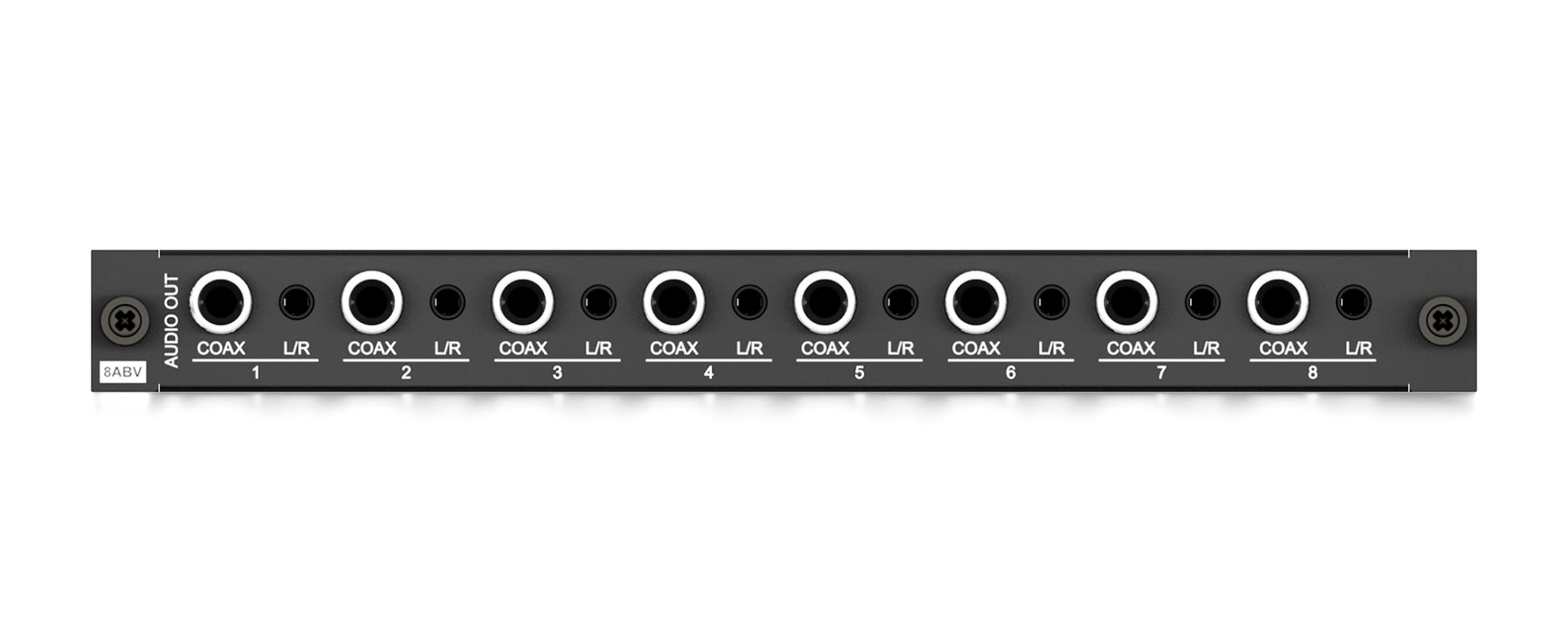

PRO-8ABV
8 Dual Output Audio Breakout Board With Variable Line Level Control

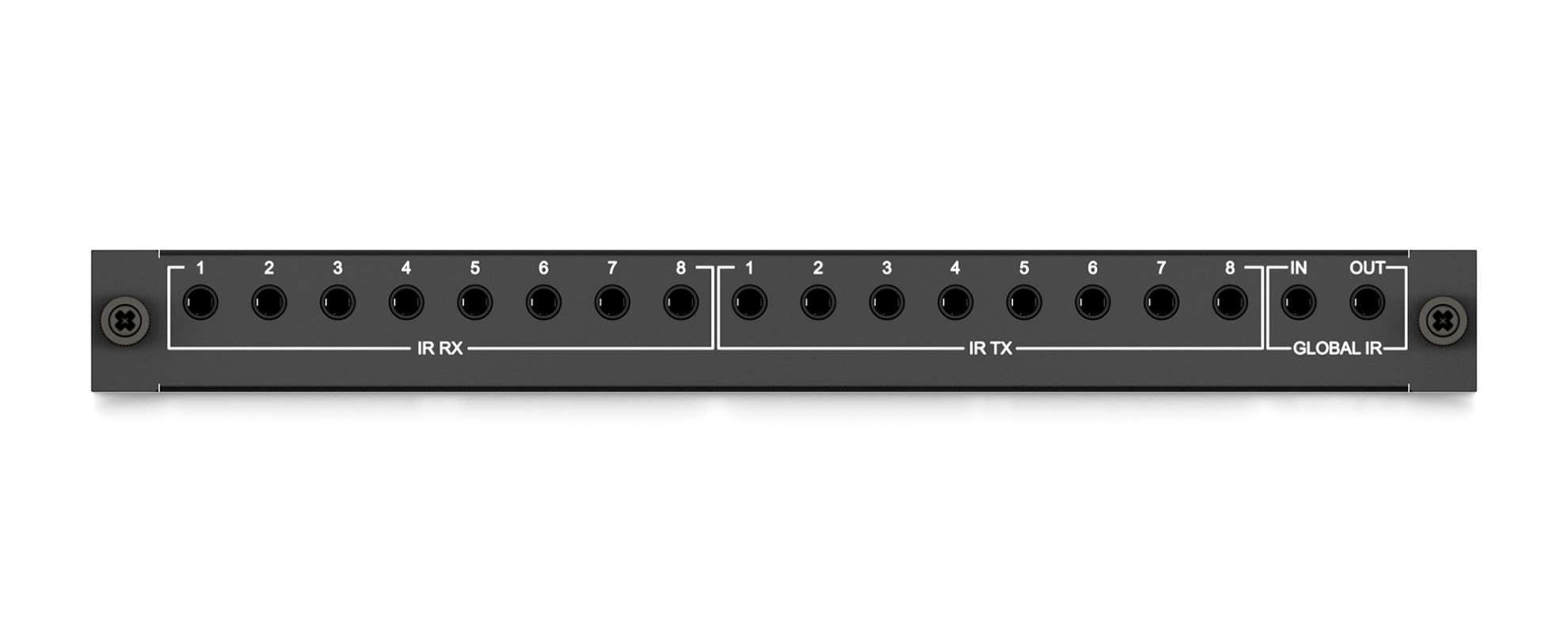

PRO-8IR
Bi-Directional IR Control Board

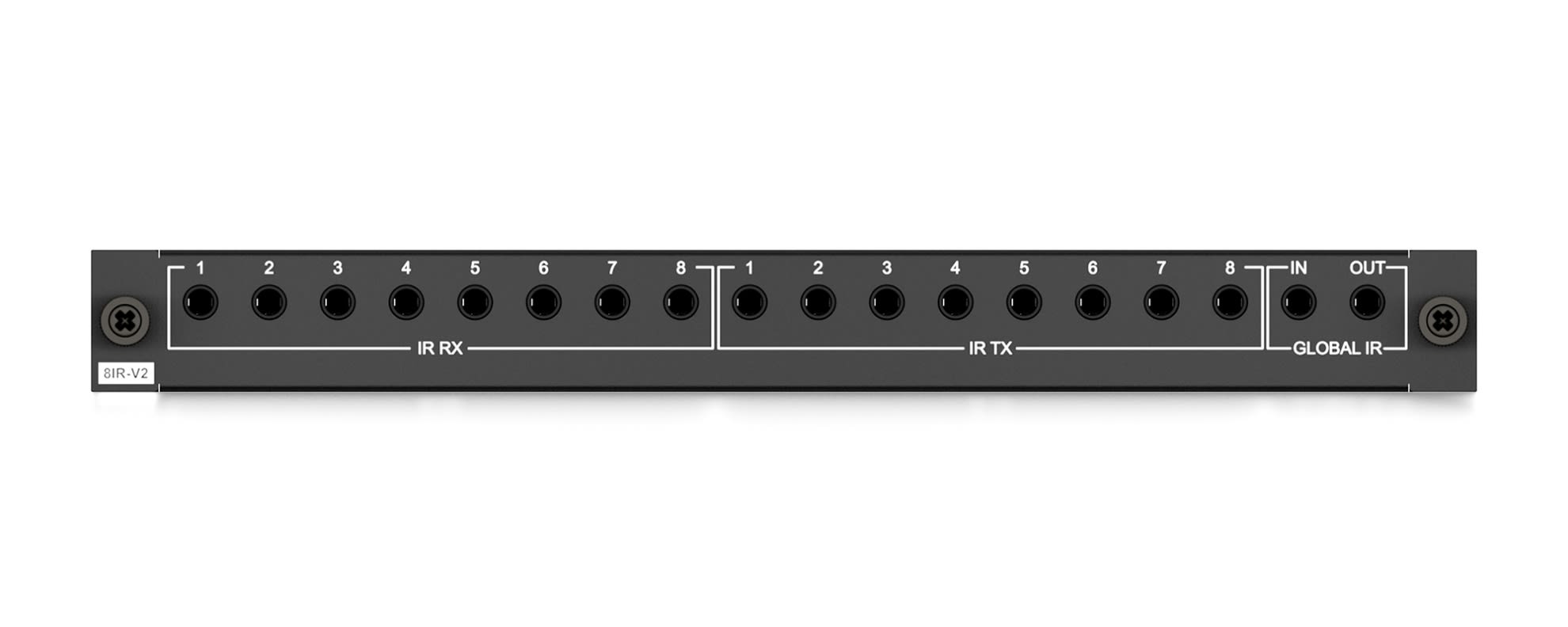

PRO-8IR-V2
Bi-Directional 5V/12V IR Control Board

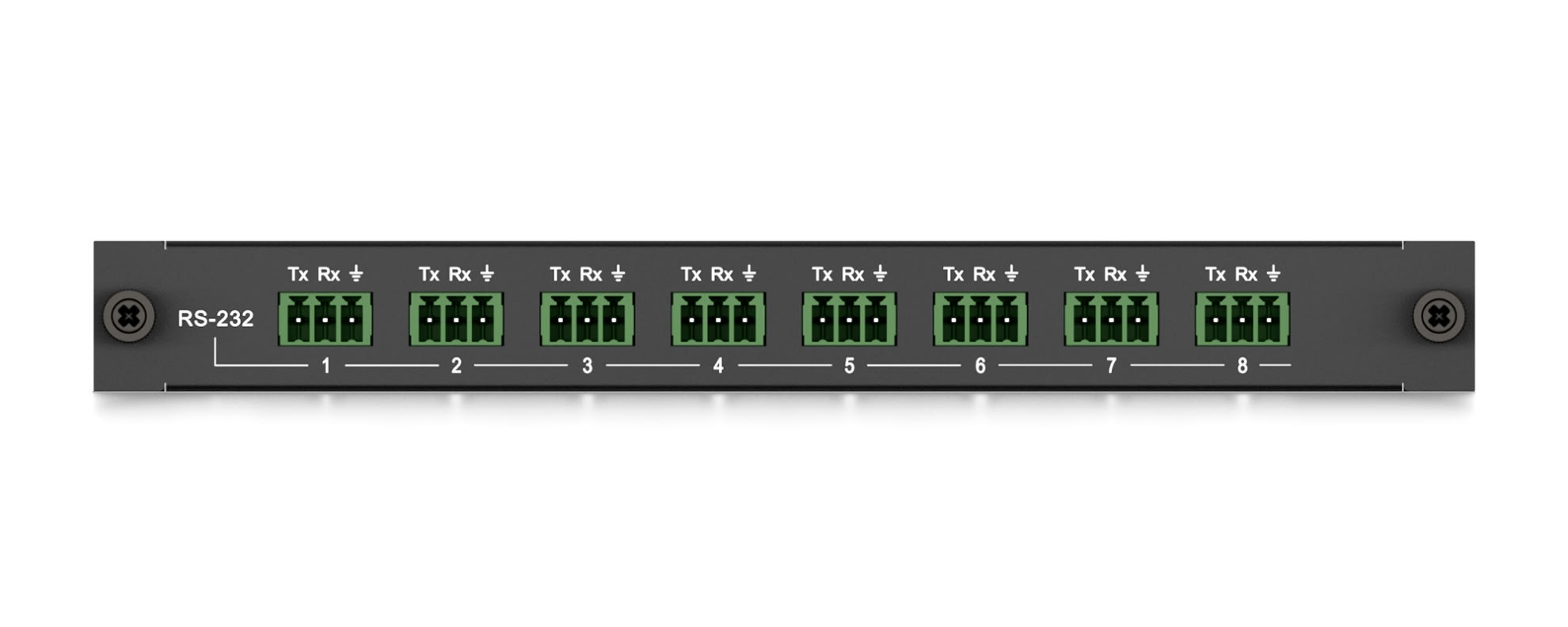

PRO-8RS232
8 Port Bi-Directional RS-232 Control Board

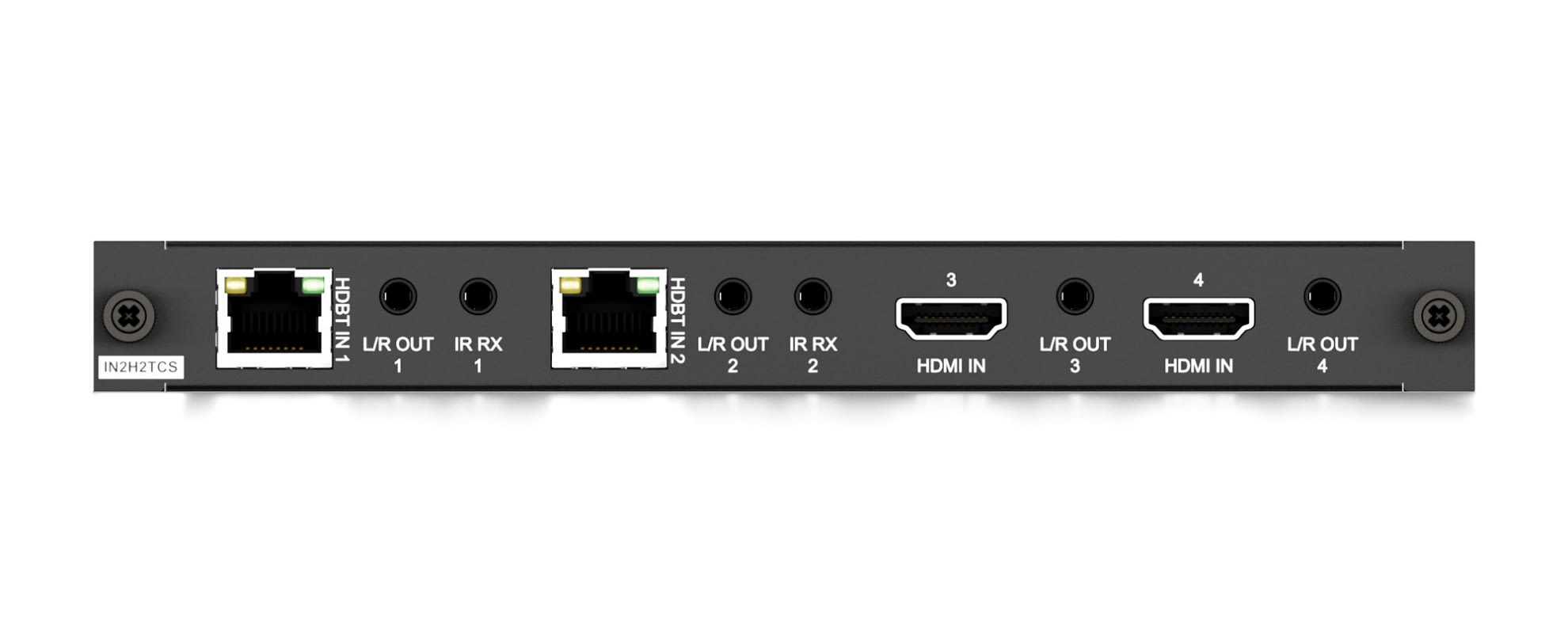

PRO-IN2H2TCS
4-Way HDMI 2.0 & HDBaseT™ CSC Input Board

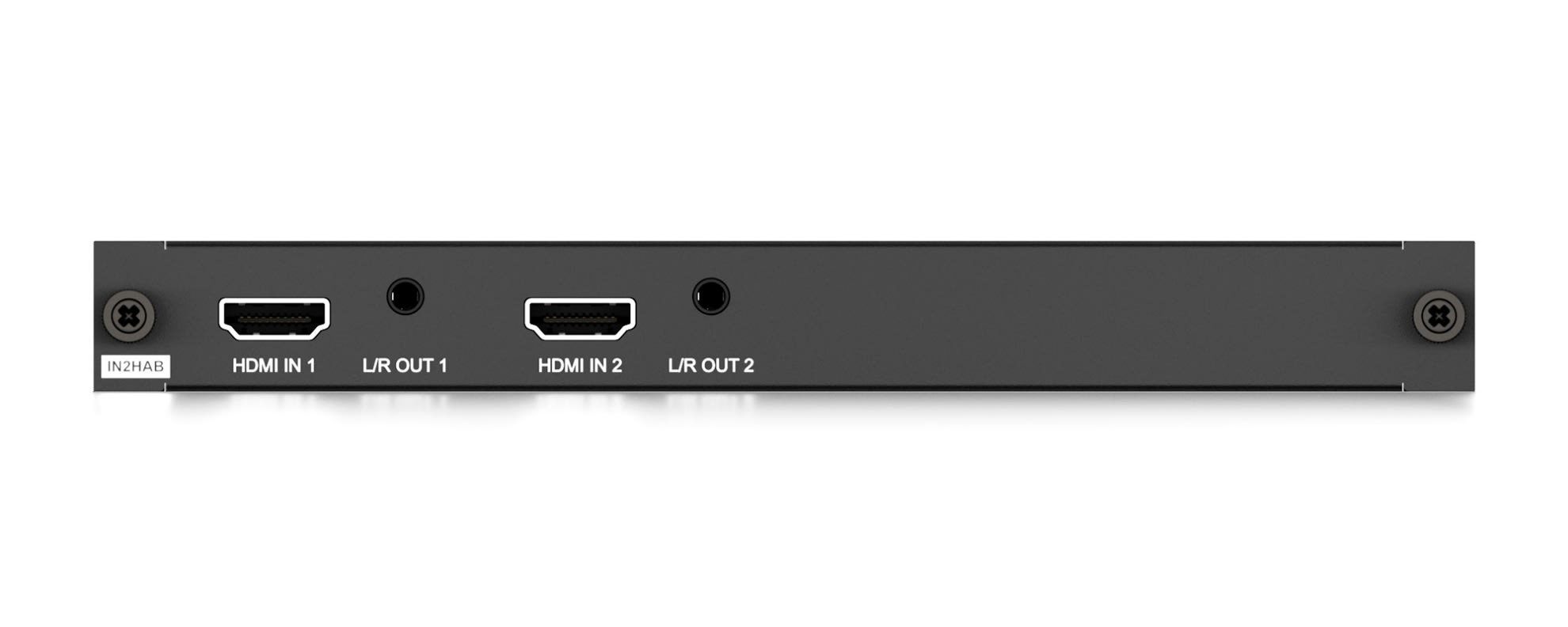

PRO-IN2HAB
2-Way HDMI 2.0 Board with Audio Breakout

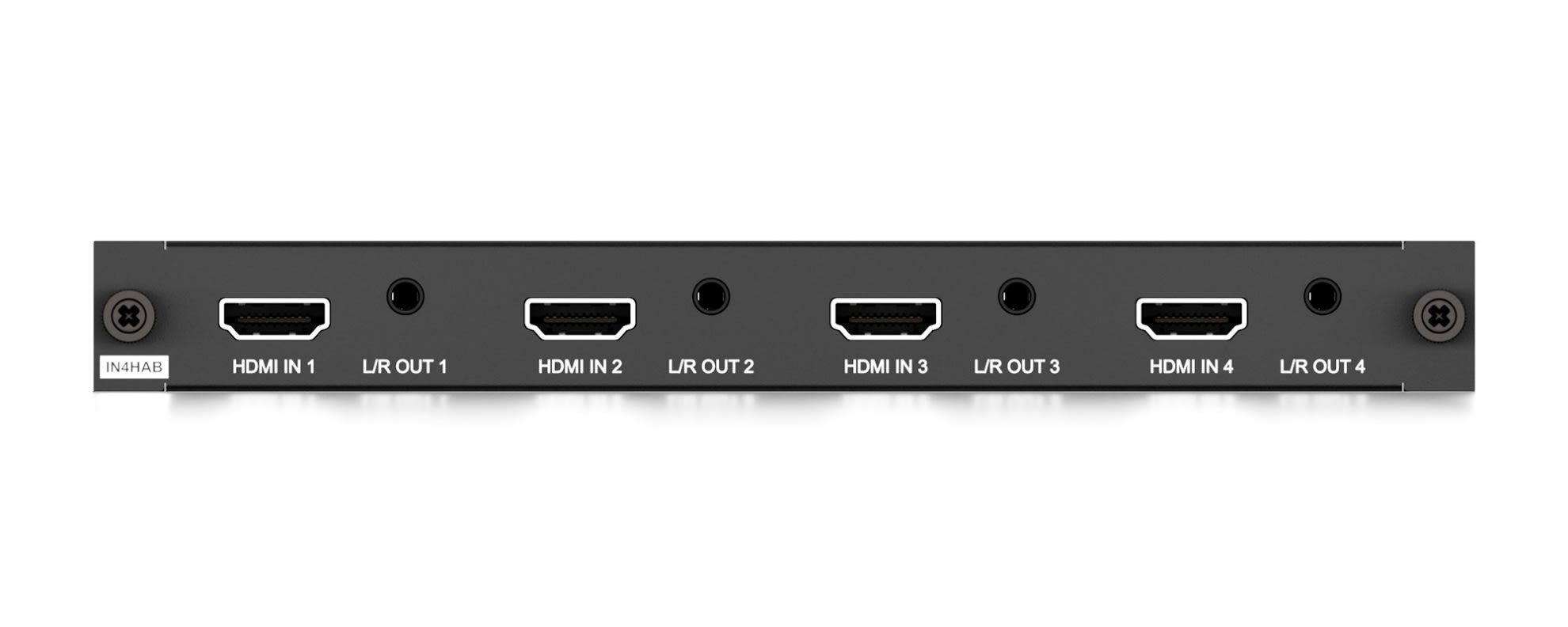

PRO-IN4HAB
4-Way HDMI 2.0 Board with Audio Breakout

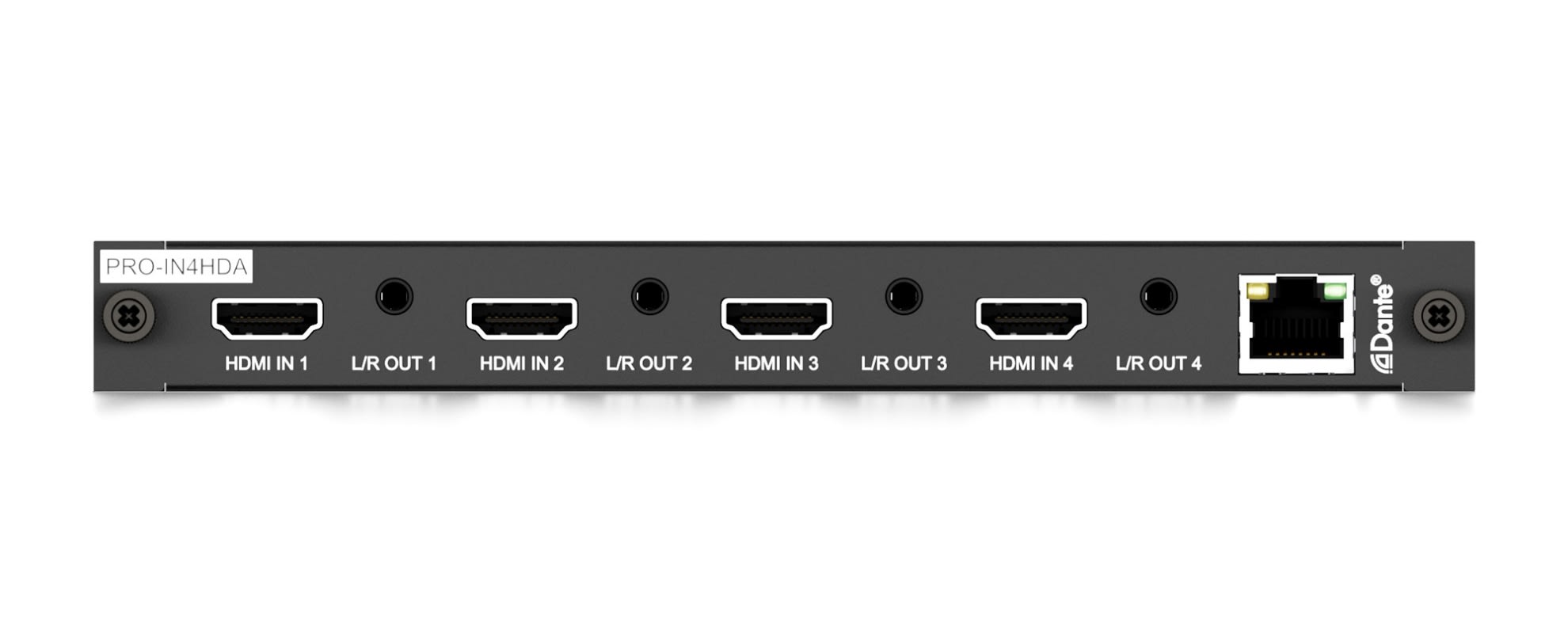

PRO-IN4HDA
4-way HDMI2.0 Input Board supporting 4K 60Hz 4:4:4 with Dante Audio input, Dante Audio output and Analog Audio Breakout
PRO-OUT2H-V2
2-Way HDMI 2.0 Output Board - 18Gbps

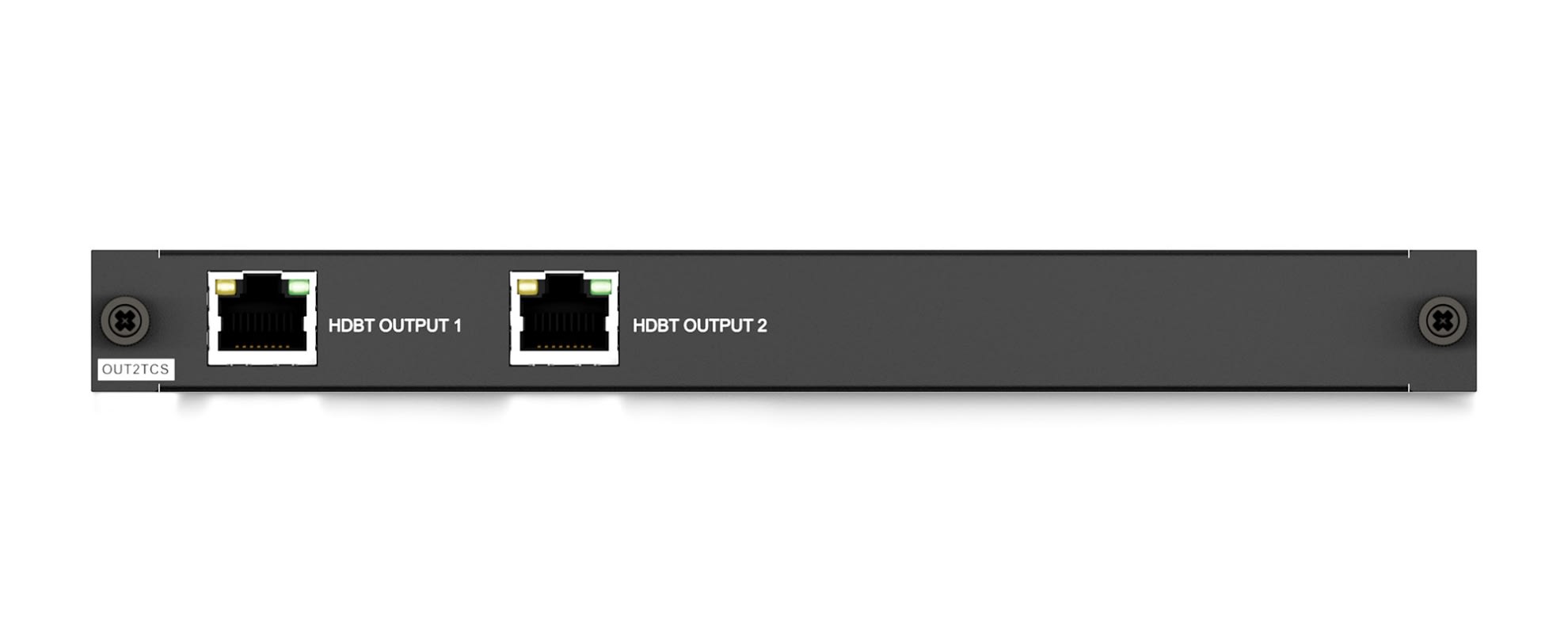

PRO-OUT2TCS
2-Way HDBaseT™ CSC Output Board - 4K HDR up to 70m
PRO-OUT2TL-V2
2-Way HDBaseT™ CSC Output Board - 4K HDR up to 40m
PRO-OUT4HTCS
4-Way Simultaneous HDMI / HDBaseT™ CSC Output Board - 4K HDR up to 70m

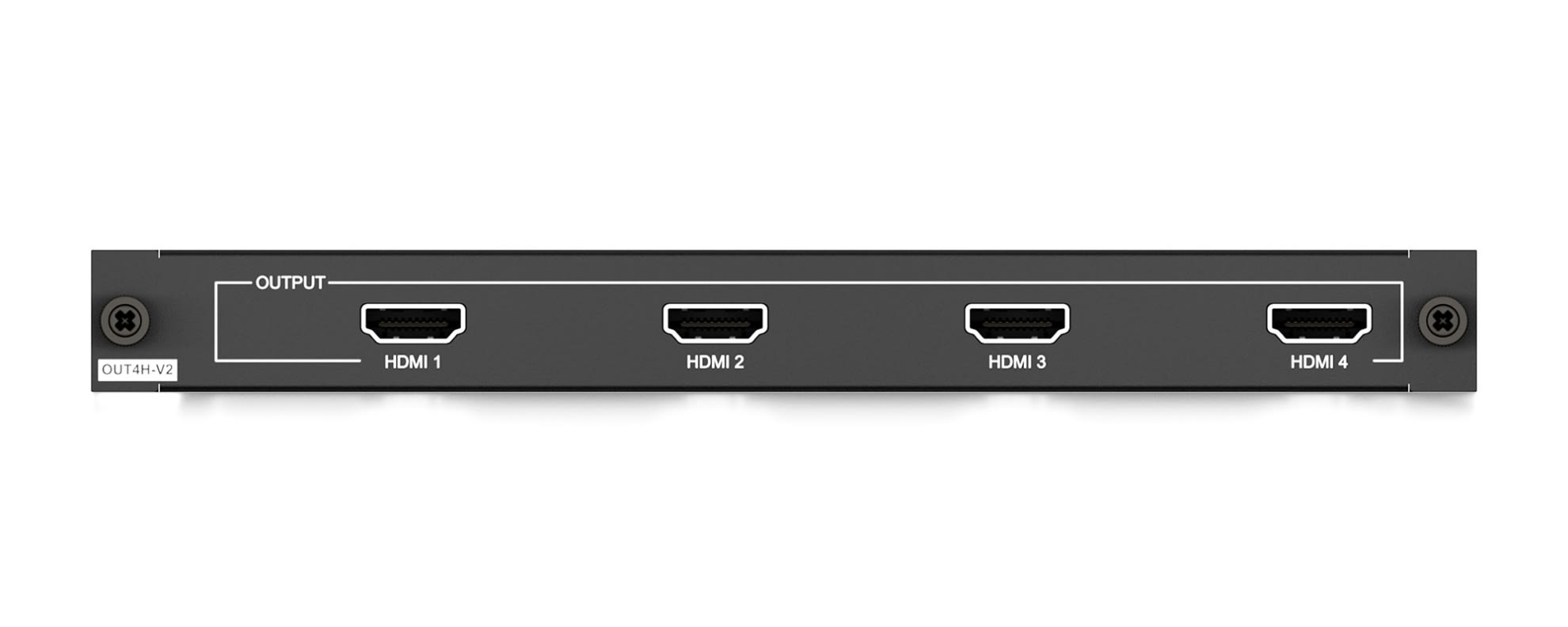

PRO-OUT4H-V2
4-Way HDMI 2.0 Output Board - 18Gbps
PRO-OUT4TCS
4-Way HDBaseT™ CSC Output Board - 4K HDR up to 70m

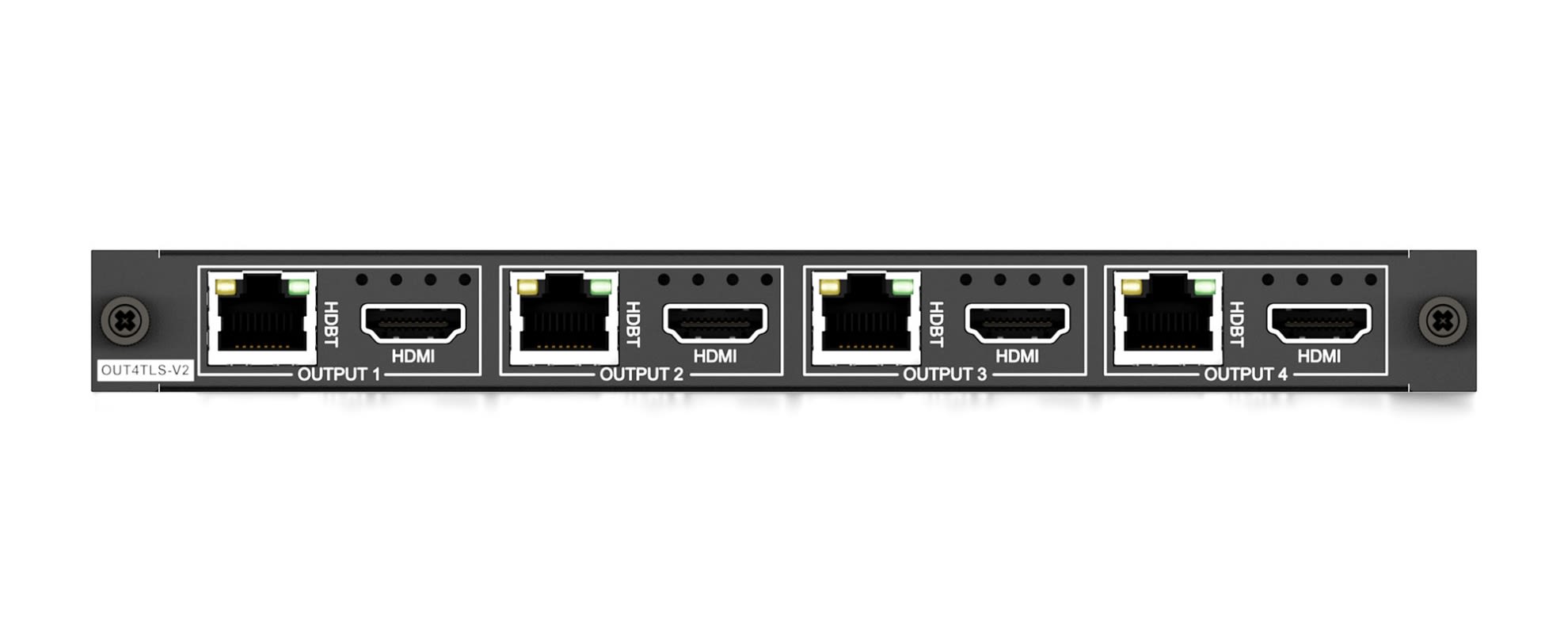

PRO-OUT4TLS-V2
